Inserting LaTeX into a Question using the Rich Text Toolbar's Math Editor

Our Math Editor allows you the author to input Math symbols in any Question that contains rich text fields. This means you can mix questions like Multiple Choice and any of our drag and drop options with math symbols, expanding the kinds of math questions you can ask.

The Math Editor can be found in any field that contains the rich text toolbar, and is denoted by the uppercase sigma symbol:


Figure 1: The Rich Text Toolbar in the Compose Question field of an MCQ.

By default, the math markup language used by the Math Editor is set to LaTeX. You will see several options available in the Editor:

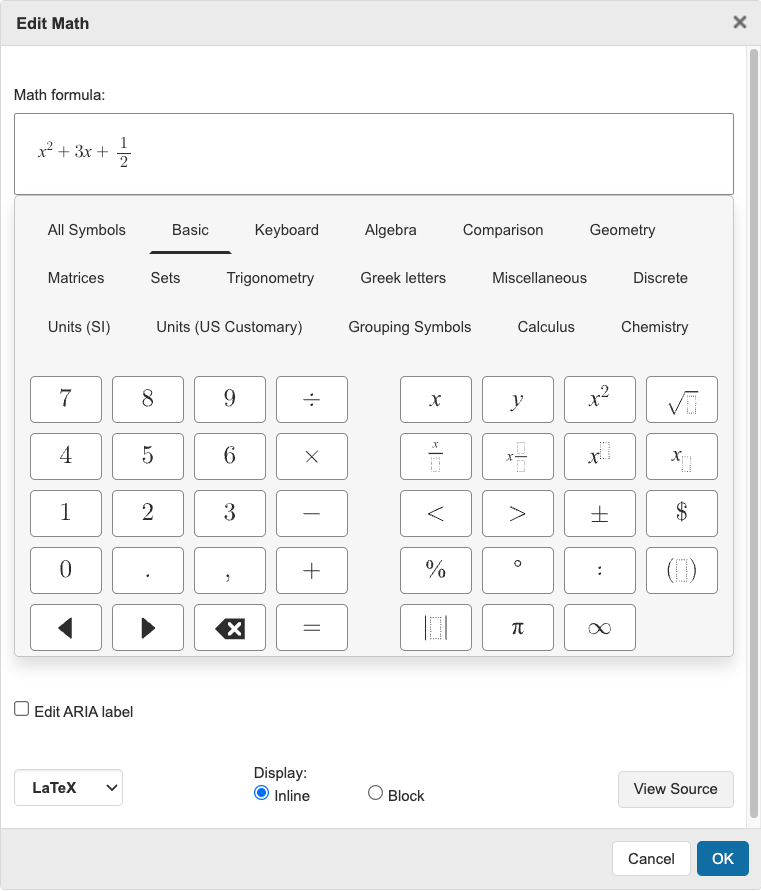

Figure 2: The Math Editor pop-up.

Math Keypad

Enter math symbols using the keypad. Select from the drop down menu on the top left to navigate between our different available symbols groups.


Figure 3: The LaTeX symbols drop down menu in the math keypad.

ARIA Label

This will auto-generate as you enter symbols using the keypad, but you can modify the auto-generated label to whatever you want by typing directly inside the ARIA label field.


Figure 4: The ARIA Label field in the Math Editor, which can be easily modified.

Display

Underneath the ARIA Label field, you can choose between Inline or Block display.

Inline is the default setting, and allows you to insert text on the same line as the LaTeX in the rich text field, e.g.

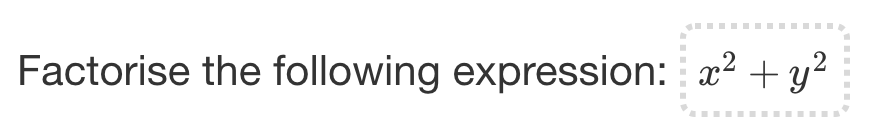

Figure 5: Inline LaTeX style

While the Block style places the LaTeX expression on a new line.


Figure 6: Block LaTeX style

Source

Clicking View Source will show you the raw LaTeX markup, alongside the ARIA Label. You can modify both the LaTeX source code and the ARIA Label by typing directly into these fields.


Figure 7: LaTeX source in the Math Editor.
