Overview
The Formatted as (equivSyntax) method checks if the learner response is expressed in a specific format. This method is not a comparison method so no correct answer is set by the author. Instead when this method is used alone, any answer that is of the specified form will be marked as correct.
When combined with the Numerically equals to (equivValue) method, this method can be useful for constraining the possible correct answers.

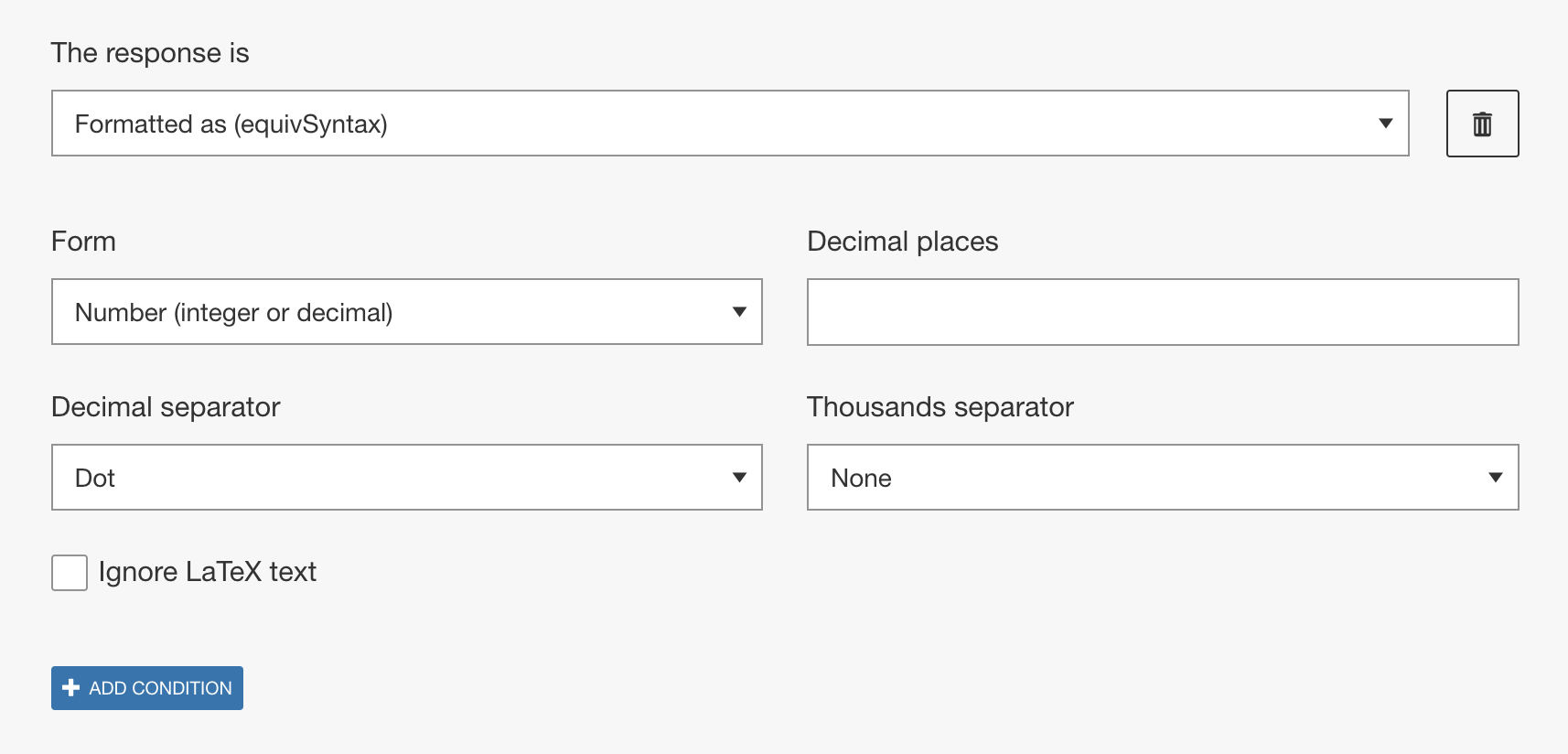

Additional Options
Forms
There are eight different forms that you can select from. Some forms have an additional field associated with them that allows you to further define the desired correct answer format. We are using the convention that all non-zero digits, all trailing zeros, and zeros between non-zero digits are significant and that all leading zeros are not significant.
-
Number (integer or decimal) - Any integer or floating point.
- Additional field: Decimal places
-
Integer - Any integer.
- Additional field: Significant figures
-
Decimal - Any decimal value.
- Additional field: Decimal places
-
Scientific - Any number in scientific notation. This option requires the coefficient to be greater than or equal to one and less than 10.
- Additional field: Significant figures
- Fraction - Any fraction, either a simple or mixed fraction.
- Mixed fraction - Any mixed fraction. This option requires the numerator of the fractional part to be less than the denominator.
- Simple fraction - Any fraction expressed as an integer divided by an integer.
- Fraction or decimal - Any fraction or decimal.
Decimal and thousands separator
Authors can specify what separators should be recognized by the engine and can be used by the learner. From the Decimal separator drop-down either a dot or a comma can be selected. Depending on the selection of the decimal separator, from the Thousand Separator drop-down dot, comma, and/or space can be selected.
Ignore LaTex text
This option refers to LaTeX text only and when enabled the engine will ignore any LaTeX text in the authored value and learner response when comparing for equivalency. For example, any text added in a Text block by the author or units entered by the keypad are set as LaTex text and would be ignored.
Examples
|
Form |
Additional field |
Learner response |
Result |
|
Number |
2 0.5 .5 .500 .834 1/2 |
true true true true true false |
|
|
Number |
1 |
0.5 .5 .500 |
true true false |
|
Integer |
5 0.50 1÷2 50% |
true false false false |
|
|
Integer |
3 |
105 100 1000 |
true true false |
|
Decimal |
1.0 1.23 1. 1 |
true true true false |
|
|
Decimal |
3 |
1.000 1.234 1.2 |
true true false |
|
Scientific |
2 \times 10^3 1.2 \times 10^{-2} 10 \times 10^2 |
true true false |
|
|
Scientific |
2 |
2.34 \times 10^3 1.2 \times 10^{-2} |
false true |
